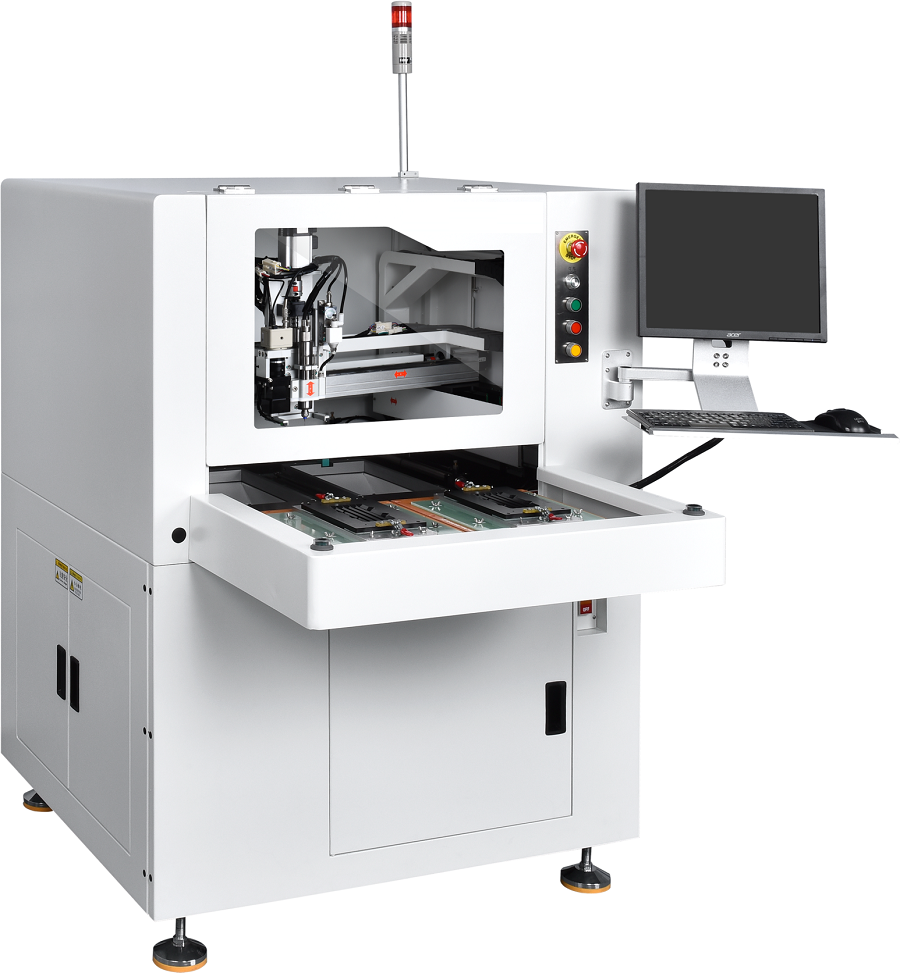

YSVC650系列是一款視覺對位全自動PCB分板機，配置高CCD視覺對位補正裝置，特別適合精密和高產能之PCB分班作業，適合手機，GPS，PDA和MOOULE等多種小塊多連板之PCB分板，采用NAKANISH日系精密主軸，切割應力小，板邊平滑，精密度高。

Ysvc650 series is a visual alignment full-automatic PCB splitter, equipped with high CCD vision alignment correction device, especially suitable for precision and high production capacity PCB division operation, suitable for mobile phones, GPS, PDA and mobile, and other small multi connected PCB sub board. It adopts nakanish Japanese precision spindle, with small cutting stress, smooth board edge and high precision.

規格參數 Specification parameters：

型號 model	YSVC-650
工作模式 Working mode	離線型 Offline
軟件版本 Software version	Basic/Professional/Customized
切割功能 Cutting function	直線、弧線、曲線 Straight line, arc, curve
視覺系統  vision system	視覺自動定位 Visual automatic positioning
機臺重復精度 Repeated accuracy of the machine	±0.01mm
切割精度 Cutting accuracy	±0.01mm
最大PCB厚度 Maximum PCB thickness	3.0mm
銑刀直徑 Diameter of milling cutter	0.8-3.0mm
主軸轉速 Spindle speed	Max60,000rpm
X、Y、Z軸驅動方式 Shaft drive mode	AC伺服馬達 Servo motor
X、Y袖切割速度 Sleeve cutting speed	0-100mm/s
人機操作及資料存儲 Man machine operation and data storage	FPC系統 system
操作界面 Operation interface	WindowS7
主機電壓 Host voltage	220V50HZ1
